Optical Fiber Splicer Fusion/Fiber Optic cable Fusion Splicing Machine
Product Description
OFS6516 fusion splicer adopt high-speed image processing technology and special precision- positioning technology, automatically finish the whole process of fiber fusion in 7 seconds typically, LCD monitor displays all steps of fiber fusion clear at a glance. Widely used for SM and MM Quartz Fiber with diameter 80-150μm, coating layer diameter 0.1-1.0mm ,2.0mm,3.0mm,2.0mm*3.1mm, and bare fiber length 10-16mm more or less. Ideal tools for construction and maintenance of fiber and cable in both field and laboratory applications. Support Chinese, English or other language ordered as the requirement etc.
OFS6516 splicer takes the CPC+FPGA configuration, applied new high-definition optical microscope, the splicer equipped with imported high-speed motor, applied a large number of Aluminum and magnesium alloy materials, compared with OFS6516 splicer before, 37% reduction in weight and 48% reduction in volume, speed increased to 50%, splicing loss to be lowered 57%,enironmental adaptation increased 80%, reliability(MTBF) increased 200%,customers will have new experience for the splicer .
Feature:
- The advanced core to core fiber alignment by profile alignment system(PAS)
- Parameter needn’t be adjusted when switch on the fusion splicer
- X/Y axes were displayed meanwhile, Magnification up to 320 times
- 7 seconds fusion time, 18 seconds Heating time
- 300 groups fusion memory model; 100groups heating memory model
- 10000 groups splicing record; 64 images storage
- ceramic press, ceramic V-groove, Multi- one clamp fixture,
- Bi-direction splice, Automatic splice Intelligent heat shrinkable
- Data transmission USB/SD
- System to be updated by the U disk
- Built-in high capacity lithium battery, support 220 times splicing and heating, to meet one days’ work
- Long Electrode Lifetime, up to 4000 times
- Two Splicing modes: auto, manual
Standard configuration of Optical Fiber Fusion Splicer
| No. | Name | Qty. | Remarks | No. | Name | Qty. | Remarks |
| 1 | Optical Fiber Fusion Splicer | 1 set | Host | 7 | User Manual | 1 copy | Accessory |
| 2 | Carrying case(with hand strap) | 1 each | Accessory | 8 | Quick Start Guide | 1 page | Accessory |
| 3 | AC power cord | 1 pc | Accessory | 9 | Jacket remover | 1 set | Accessory |
| 4 | Power adapter | 1 each | Accessory | 10 | Lithium-ion battery | L each | Accessory |
| 5 | Standby electrodes | 1 pair | Accessory | 11 | Cleaver | 1 set | Option |
| 6 | Cooling tray | 1 each | Accessory | 12 | Stripper | 1 each | Option |
Product Exhibition
ultifunction carrying box:
Modern design & light weight, Built-in integrated worktable,Opened or closed, the lid can be used as a worktable
Working with Multi one fiber fixture, meet the fusion requirement for cladding diameter of 80-150um fiber and a variety of optical fiber patch cord and drop cable
Ceramic V-groove Ceramic press:
High precision ceramic V-groove, making the fiber more convenient and accurate and easy to clean before fusion.
Intelligent heat shrinkable:
Put detection elements in the heater, The heating function will be started automatically only when the heat shrinkable tube is placed in the heater, Prevent misoperation

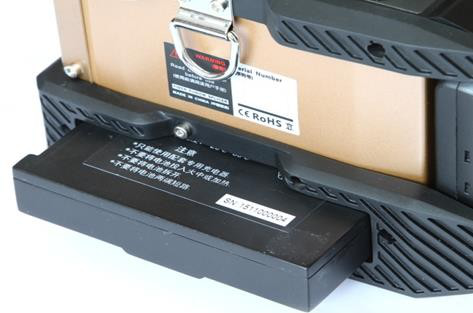

Large capacity pluggable lithium battery:
Built-in p large capacity pluggable lithium battery, support 220 times splicing and heating, to meet one days’ work .
Graphical interface and touch screen:
The new GUI( graphical user interface) and touch screen are designed, The operator can easily and intuitively set up the splicer and understand the info of the splicer

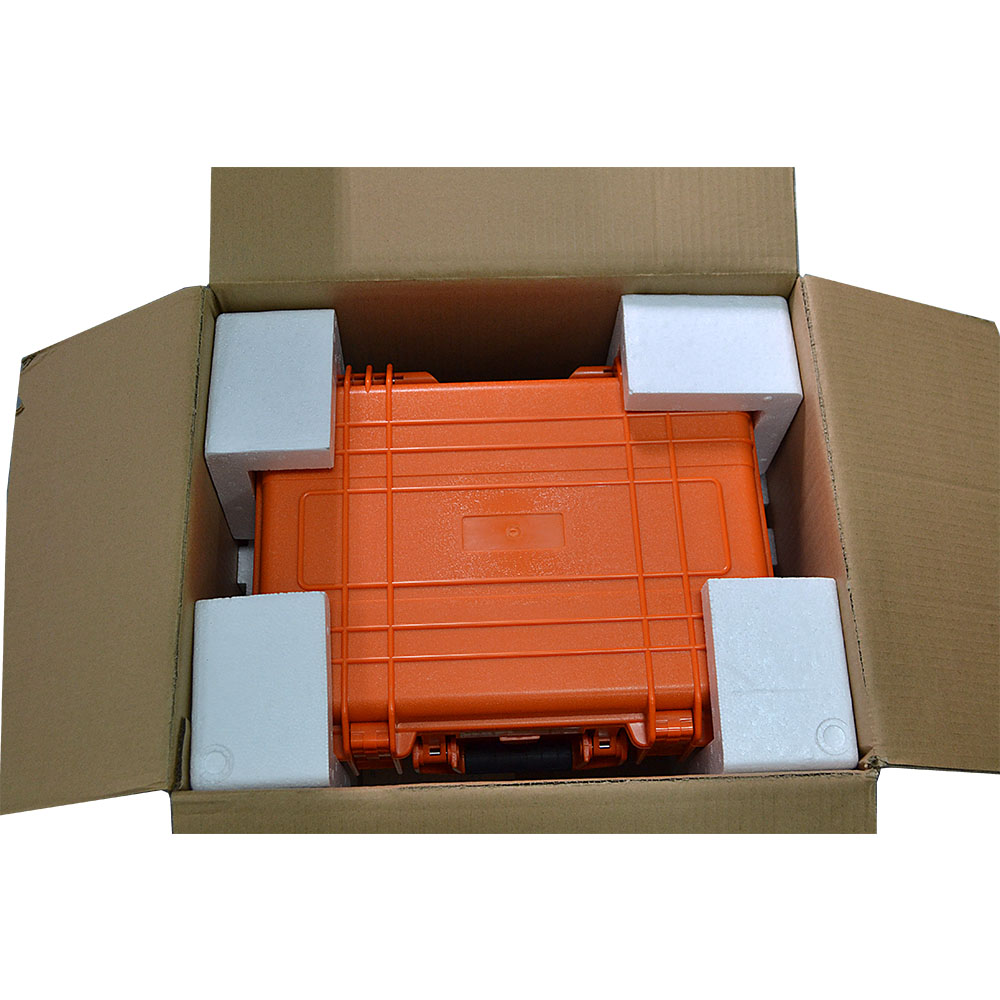

Parkage
