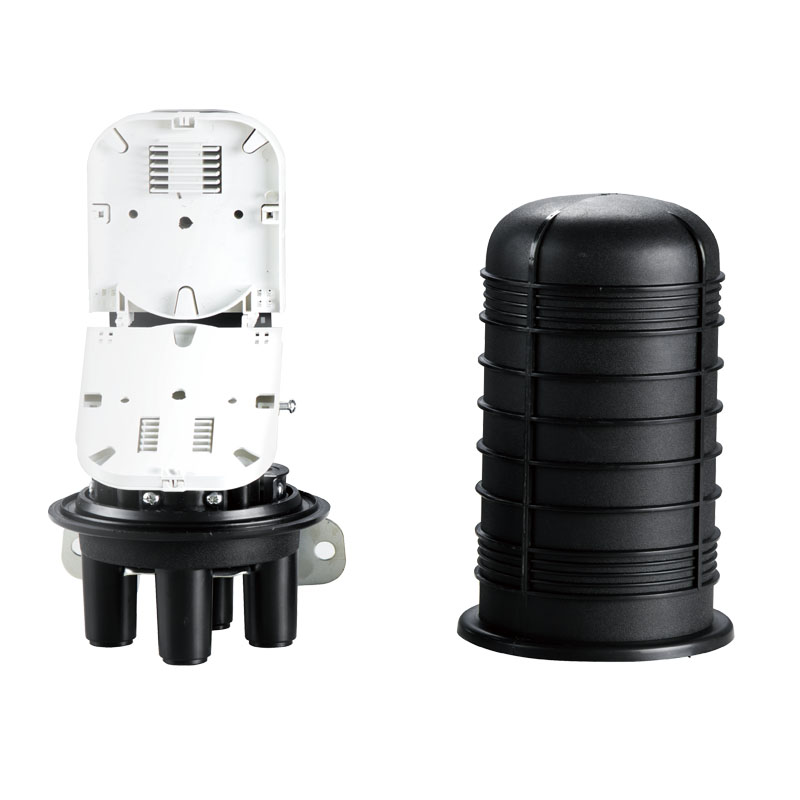

Direct Buried Dome Type FOSC Fiber Optic Splice Enclosure For Backbone / FTTH Network

Product Categories

Shenzhen Optfocus Technology Co., Ltd.

Contact Now

Name: Direct Buried Dome Type FOSC Fiber Optic Splice Enclosure For Backbone FTTH Network
Brand: Optfocus
Price: 6 USD

Brand Name : Optfocus

Model Number : SC-D048-02

Certification : CE&FC

Place of Origin : China

MOQ : 100 pcs

Price : $6

Payment Terms : L/C, T/T

Supply Ability : 5000pcs/month

Delivery Time : 5-10 working days

Packaging Details : 1 pcs in a inner box,several pcs in a export carton

Type : Fiber Splice Closure

Use : FTTH

Installation : Pole/Aerial/Manhole

Max capacity(F) : Single:144Cores; Ribbon:432/576Cores

Contact Now

Direct Buried Dome Type FOSC Fiber Optic Splice Joint Closure Enclosure For Backbone And FTTH Network

Specifications

1. The box body is made of PC or PP high quality engineering plastic material with excellent intensity and stable chemical performance.

2. With good waterproof design, the fiber optical splice closure can be applied into underground and aerial.

3. Excellent fiber routing design ensures the radius curvature of the fiber well and enough fiber storage space.

4. The service life is up to more than 25 years.

5. Protection Level: IP68

6. The box body can be sealed quickly and easily, which the ports of inlet and outlet cable likes to do that.

7. Product dimension: 310*Ф128 mm

8. Flame retardant performance: non-flame retardant

Box section

Product name	Specification	Unit	Quantity	Remark
Box bottom		PCS	1
Box cover		PCS	1
Cable holder		SET	4
Holder for strengthening cable part		SET	1
Splice tray		PCS	4
Cable tie		PCS	1
Splice panel		PCS	1	The color is same as box body’s

Accessory section

Product name	Specification	Unit	Quantity	Remark
Nylon cable tie	3*100	PCS	10
Splice tube	L=60MM	PCS	24	The quantity of splice tube is same as the fibers’
Sandpaper	80*30	PCS	1
Split card		PCS	1
Aluminium boil	100*100	PCS	2
Protective tube for bare fiber		M	1
Insulation Tape		PCS	1	Same as quantity for inlet and outlet cables

Product Tags:

Direct Buried Dome Type FOSC Fiber Optic Splice Enclosure For Backbone / FTTH Network Images
