Epon onu Very Low Price Compatible Bdcom and huawei ZTE 1.25G Epon Gpon Onu

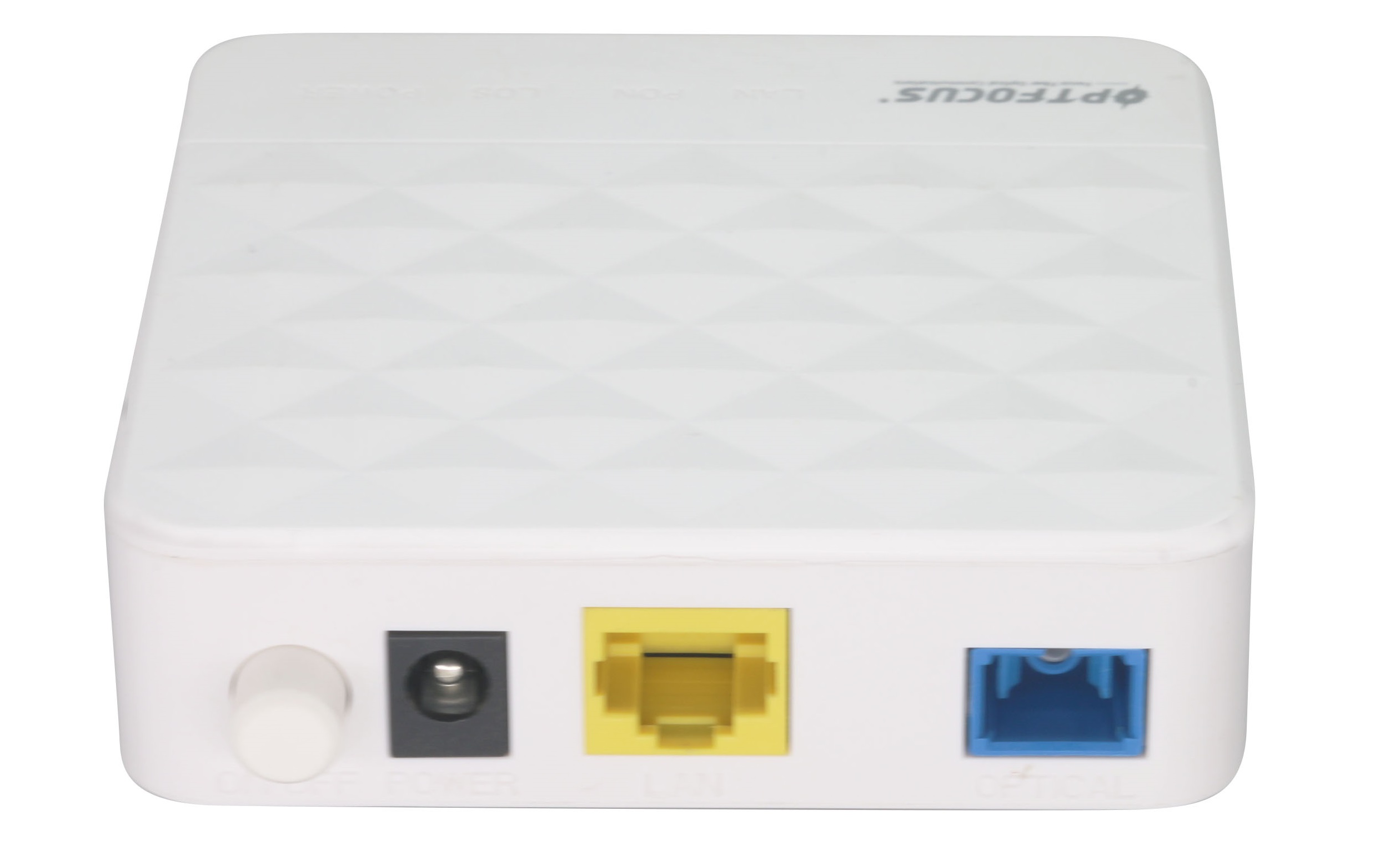

1GE Ethernet ports XPON ONU for FTTH solution
OFSX611 XPON(GPON and EPON dual mode) ONU. it can be used as GPON or EPON. It is designed for meeting the triple-play service needs of fixed network operators or cable operators, and widely used in FTTx, video surveillance and other requirements. It is based on mature GPON and EPON technology, and has high ratio of performance to price, stable, cost-effective, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with GPON and EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah requirement.
Technical Specification
| Tech parameters | Description |
| Up-link interface | 1 XPON interface,SC single mode single fiber RX 2.488 Gbits/s rate and TX 1.244 Gbits/s(GPON), RX 1.244 Gbits/s rate and TX 1.244 Gbits/s(EPON) rate Fiber type:SC/UPC
Optical power:0~4 dBm Sensitivity:-28 dBm safety: ONU authentication mechanism |
| Wavelength(nm) | TX 1310nm,RX 1490nm |
| Fiber connector | SC/UPC connector |
| Down-link data interface | 1*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface |
| Indicator LED | 4 pcs |
| DC supply interface | input+12V 0.5A |
| Power | ≤5W |
| Operating temperature | -5~+55℃ |
| Humidity | 10~85%(non-condensation) |
| Storage temperature | -30~+70℃ |
| Dimension(MM) | 85*85*28mm(mainframe) |
| Weight | 0.24Kg(mainframe) |
Product Feature
-
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
-
Completely compatible with GPON international standard IEEE802.3ah/802.3-2005
-
Support China Telecom GPON CTC3.1 standard and expand OAM
-
Support DBA reporting mechanism request
-
Support OAM (Link, Test, Loop back)maintenance function defined IEEE802.3ah
-
Support to save configured parameters if power down
-
Support to configure the work mode at the user port
-
Support MDI-MDIX automatic-detection at the user port.
-
Support access authentication based on serial number
-
Support access authentication based on MAC address
-
Support 802.1Q VLAN
-
Support traffic rule to modify the related priority.
-
Support to restore the factory settings
-
Support the remote reset and reboot
-
Support dying gasp outage alarm
-
Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
LED Information
| Symbol | Color | meaning |
| PWR | Green | ON:successfully connect with power OFF:fail to connect with power |
| PON | Green | ON:ONU port Link link correctly Flicker: PON registering
OFF:ONU ports link link faulty |
| LAN | Green | ON: Link up correctly Flicker: data is transmitting OFF: link down faulty |
| LOS | Red | Flicker: fail to connect with PON port
OFF: detected fiber to input |
Order Information
| Product name | Product description |
| OFSX611 | 1*XPON(1490nm Rx,1310nm Tx,20Km,SC),1*10/100/1000Base-T,12V Power supply |

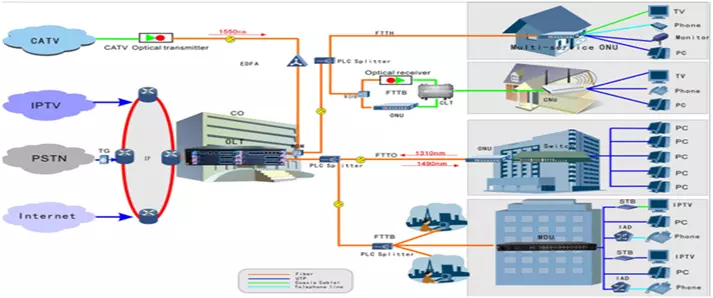

Solution

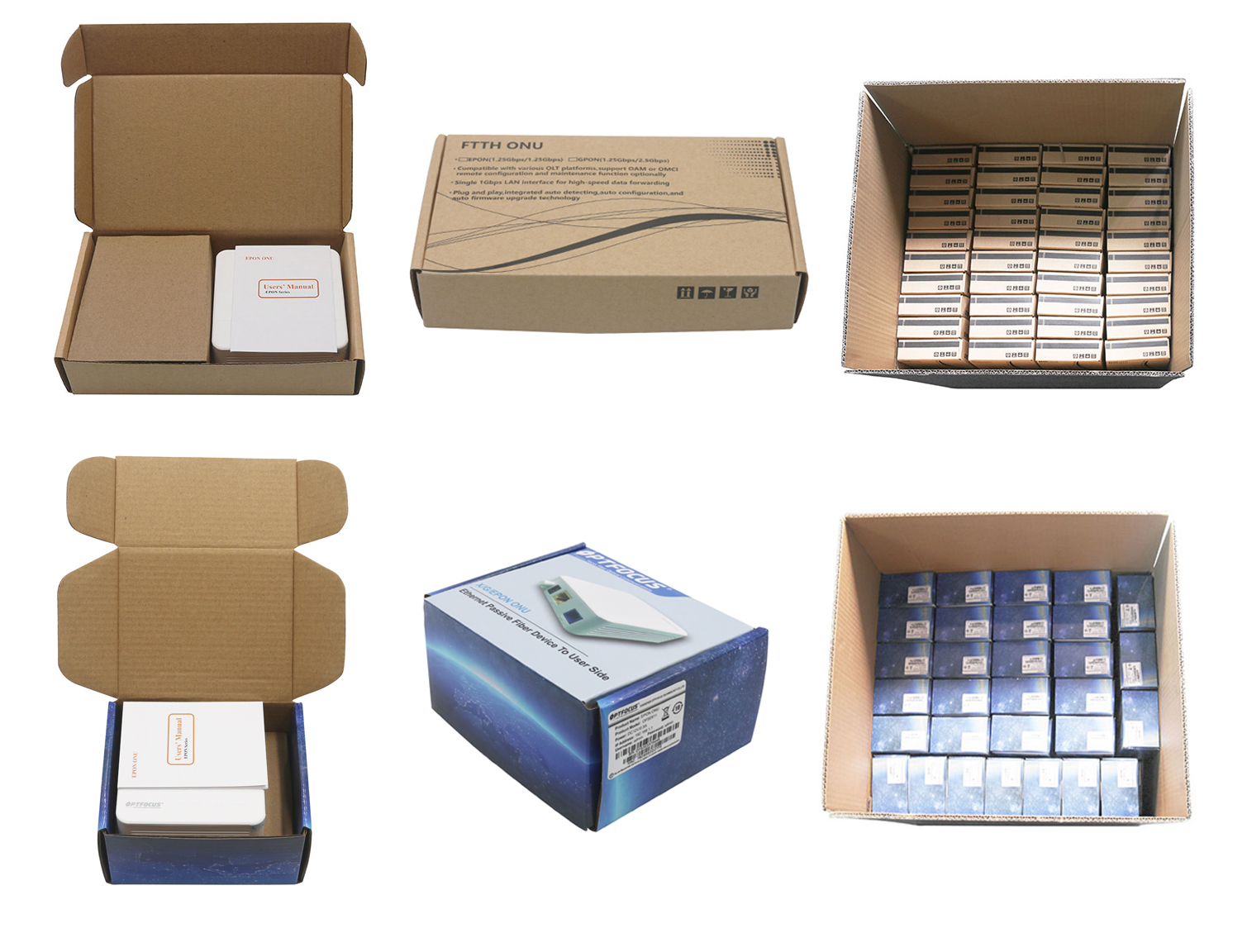

Packing:
Optofucs brand packing:
1 PCS/Box, 90Boxes/CTN, 48*43*38CM, 17.5KG/CTN
Neutral packing:
1 PCS/Box, 80Boxes/CTN, 48*43*38CM, 16KG/CTN
Notification:
About purchasing and shipping:
1) Products are in stock. Contact us and you will buy and ship directly.
2) Shipping cost is depend on address and nation. Please contact us to check the further cost.
3) Every carton includes 80 pcs of ONU device (Neutral type). Purchase order started with one carton.
4) Shipping is clearly through express. There will be a little bit delay of status updating. Please be patient. Deliver time is about 5-10 workdays.
5) Please do your best to cooperate with express company to do custom clearance. If it result in any delay or return back, seller do not take any responsiblity.
About competibility:
1) This is XPON ONU/ONT which means it fit with EPON/GPON OLT.
2) Some OLT appears propriatary protocol. that result in incompatible to ONU. (If you need sample or whole set of equipment, please chat with us about the solutions.)
About products and service:
1) Products support both bridge and router.
2) This products is NO branded. If need brand, please chat with us, we support OEM & ODM services
3) Connector: SC/UPC, if need SC/APC, please contact us, we also support.
4) For this model, we have two kind of design, BOSA & SFF. This one is made of BOSA solution ( Chat with us, if you need SFF)
5) Power adaptor originally: EU.Standard (Two round plug). if you need any other standards please note us when you place the order, we will suppy accordingly.
6) Warranty: 1 year.

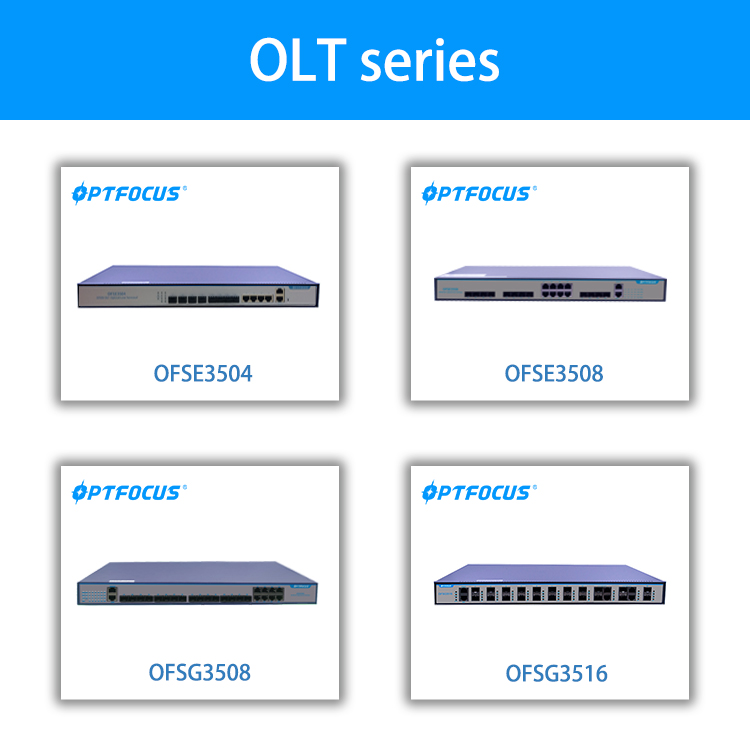

Related products
Payment Way:
Certification
Company Information

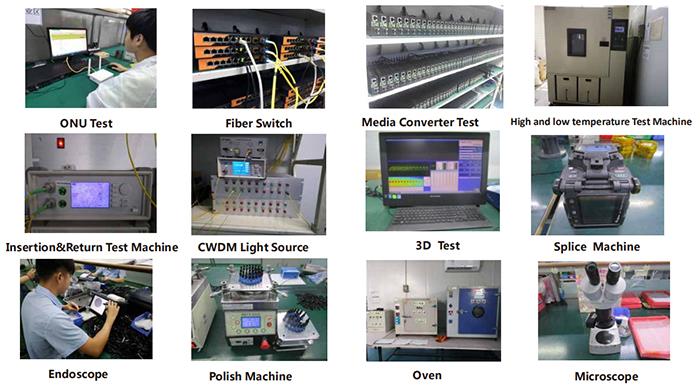

Products Test Machine
Exhibition picture
Contact us
My contact as the below
Skype: optfocus@outlook.com
Email: ftth@optfocus.com
Tel: +86 181 2649 4186
Best Regards,
Ms. Queenty
Shenzhen Optfocus Technology Co., Ltd.
( foucs on telecommunication solutions )
